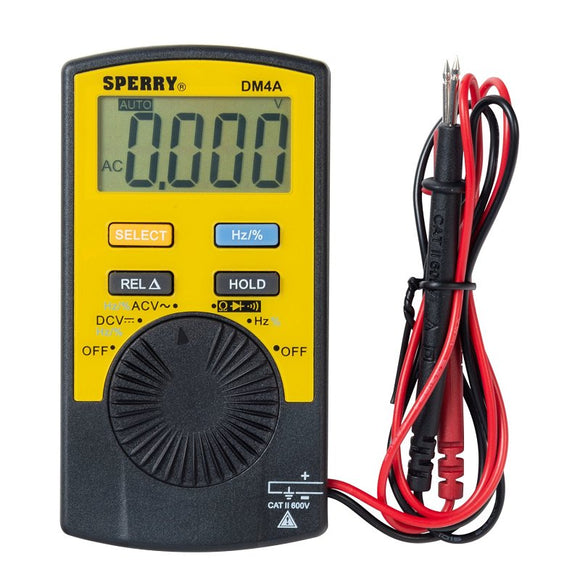

Quickly and conveniently check outlets, fuses, wires, plugs, motors, electronic circuits and more with Sperry's new pocket digital multimeter. The Sperry pocket digital multimeter offers 7 testing functions including AC/DC voltage up to 600 V, resistance, frequency, continuity, duty cycle and diode testing over 21 ranges with auto-ranging capability. Designed for someone seeking a convenient and simple yet accurate and efficient multimeter. This compact unit features overload protection on all ranges and both a low battery indicator and an auto-power off function to improve battery efficiency.
Features
- Auto-ranging
- Overload protection on all ranges
- Data hold feature captures the reading on the display
- Auto power off and low battery indicator
- 3999 count LCD display
- Relative delta displays changes in reading
- Pocket-sized design for easy use, storage and transportation
- Designed to CAT II 600V
Specifications
| Color | Yellow |
|---|---|
| Dimensions | 2-1/4 x 1/2 x 4-1/4 in |
| Display Type | LCD |
| Includes | (1) CR2032 Battery and Test Leads |
| Measuring Functions | AC/DC Voltage Resistance Frequency Continuity Duty Cycle and Diode Test |
| Measuring Range | 1 mV to 600 VAC/VDC 0.1 Hz to 99.99 kHz 0.1 to 99.9 VAC/VDC |
| Power Source | Battery |
| Resistance | 0.1 Ohm to 40 MOhm |
| Resolution | 1 mV to 1 V 0.1 Ohm to 10 kOhm 0.1 Hz to 0.1 kHz 0.1 |
Warranty: Lifetime
