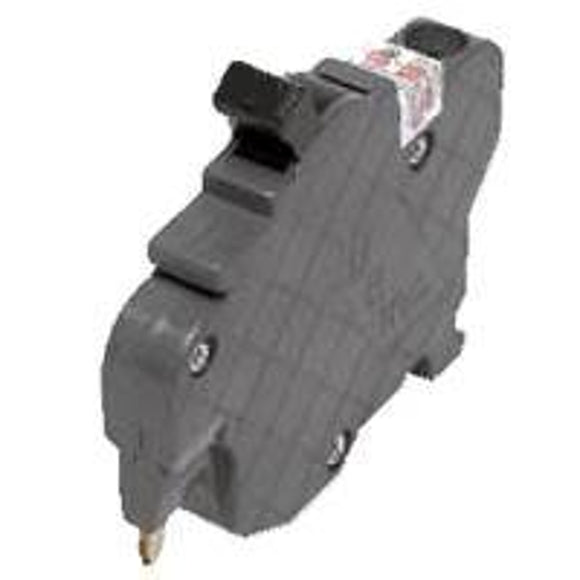

This thin breaker replacement is designed to be compatible with stab-lok Federal Pacific electrical panels. It has a 0.5 in (thin-sized) body, a single pole and is rated for 10,000 AIC, 30 A and 120 V, making it compatible with Federal Pacific panels. Each breaker is newly manufactured to provide Great protection against overcurrent and short circuit conditions. The Federal Pacific replacement breaker has been manufactured by Connecticut electric with the finest materials available for long-lasting performance.
Specifications
| Color | Gray |
|---|---|
| Current Rating | 30 A |
| Dimensions | 3.36 in L x 0.5 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric Load Centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type NC |
| Voltage Rating | 120 V |
| Wire Size | 14 to 4 AWG |
California Proposition 65: This product is identified as presenting a risk of cancer. See www.P65Warnings.ca.gov.
