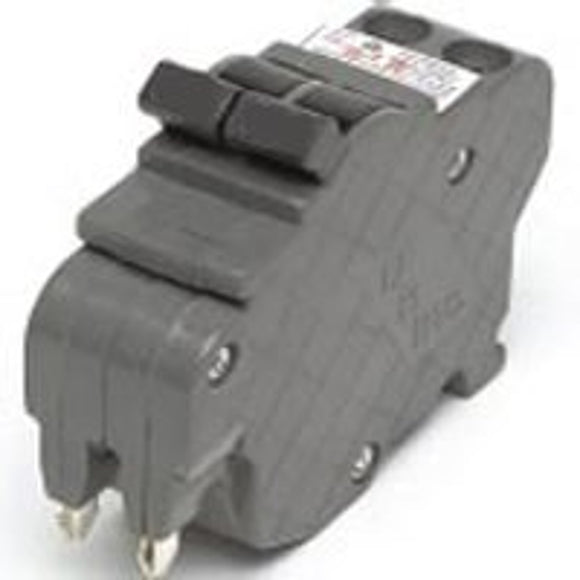

This thin breaker replacement is designed to be compatible with stab-lok Federal Pacific electrical panels. It has a 1 in (thin-sized) body, 2 poles and is rated for 10,000 AIC, 20 A and 120/240 V, making it compatible with Federal Pacific panels. Each breaker is newly manufactured to provide Great protection against overcurrent and short circuit conditions.
Specifications
| Color | Gray |
|---|---|
| Current Rating | 20 A |
| Dimensions | 3.36 in L x 1 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric Load Centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type NC |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 10 AWG |
California Proposition 65: This product is identified as presenting a risk of cancer. See www.P65Warnings.ca.gov.
