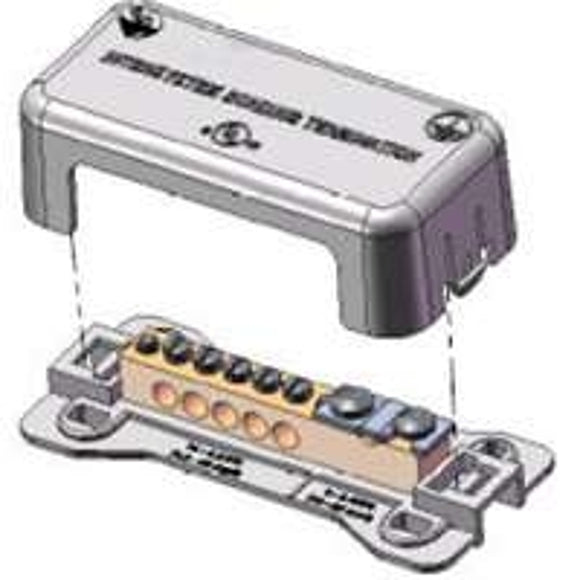

nVent ERICO IBTB Intersystem Bonding Termination Bar, Polymer PACK OF: 1

The Intersystem Bonding Termination (IBTB), part of the Vent nVent ERICO line of facility electrical protection products, is designed to meet the requirements of the 2008 NEC® Article 250.94 bonding for other systems. The IBTB is mounted adjacent to the meter base or service entrance equipment and is a convenient way to interconnect and terminate grounding conductors from telephone, CATV or radio and television antennas. The IBTB includes corrosion-resistant, stainless steel mounting hardware and is easily accessible for connection and inspection. The lay-in connection clamp (#6 to #2 AWG or 16 to 35 sq-mm) allows easy installation of the grounding electrode conductor in one continuous length, where possible. The polymeric base and housing is impact-resistant, UV-stabilized and meets UL® requirements for weatherability performance.

Features

• Interconnects and terminates grounding conductors from telephone, CATV, radio and TV antennas
• Accommodates five connectors for conductor sizes #14 Solid to #6 Stranded (1.5 to 25 sq-mm)
• Accommodates one connector for conductor sizes #6 Solid to #2 Stranded (16 to 35 sq-mm)
• Integral mounting base enables easy installation
• Includes mounting hardware
• Connects to grounding electrode conductor, does not rely on meter base enclosure bonding connection

Application: For residential and small commercial facilities
