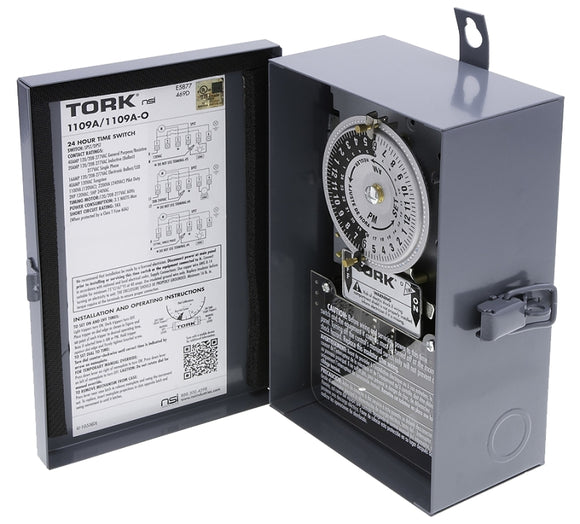

Tork 1109A Series 1109A-O Lighting Timer, 40 A, 120/208/277 VAC, 3 W, 20 to 75 min Time Setting, 24 hr Cycle, Gray PACK OF: 3

$431.96 $539.95 Save $107.99

Tork SKU: 3128865 Barcode: 7.86E+11

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

Only 3 in stock!

Tork 1109A Lighting Timer, Electromechanical, 120/208/277 VAC, 40 A, Wattage Rating: 3 W, Frequency Rating: 50/60 Hz, 2, 5 hp, Contact Configuration: SPST, Cycle Time: 24 hr, Time Setting: 20 to 75 min, IP Rating: NEMA 3R, Temperature Rating: -40 to 149 deg F, Metal, Gray, Suitable for: CFL, Fluorescent, Xenon, LED, Halogen, Incandescent, HID, Includes: (1) Pair Trippers

Features

  • Designed to work with 120/208/277 V applications
  • Dust-proof, sealed motor housed in heavy-duty enclosure
  • UL certified to control all LED applications
  • Easy to override On/Off settings and 24 hr timer dial
  • Multiple ratings accommodate many different load requirements
  • Commercial-grade design with surge protection
  • Indoor/outdoor housings ideal for a variety of applications

Application: For lighting, pumps, signs, air conditioning, water heaters, fans, automatic On/Off control when operation is required at the same time every day

Specifications

Color Gray
Contact Configuration SPST
Current Rating 40 A
Cycle Time 24 hr
Frequency Rating 50/60 Hz
HP Rating 2 5 hp
Includes (1) Pair Trippers
IP Rating NEMA 3R
Material Metal
Suitable for CFL Fluorescent Xenon LED Halogen Incandescent HID
Temperature Rating -40 to 149 deg F
Time Setting 20 to 75 min
Type Electromechanical
Voltage Rating 120/208/277 VAC
Wattage Rating 3 W

Warranty: 2 Years
