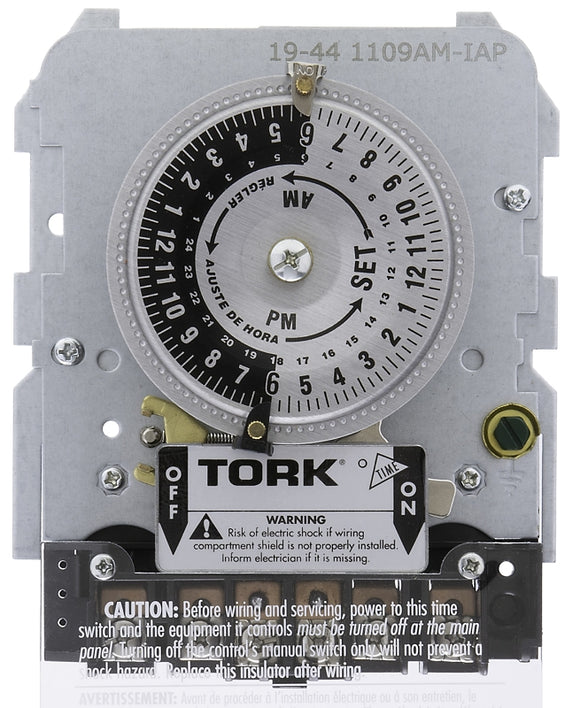

Tork 1109A Series 1109AM-IAP Analog Timer, 40 A, 120/208/277 VAC, 24 hr Cycle, Gray/Silver PACK OF: 3

$291.82 $364.78 Save $72.96

Tork SKU: 3128873 Barcode: 7.86E+11

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

Only 2 in stock!

Tork 1109A Analog Timer, Mechanical, 120/208/277 VAC, 40 A, Contact Configuration: SPST, DPST, Cycle Time: 24 hr, IP Rating: NEMA 1, Installation Type: In-Wall, Metal, Gray/Silver, Suitable for: CFL, Fluorescent, Xenon, LED, Halogen, Incandescent, HID

Features

  • Designed to work with 120/208/277 V applications
  • Dust-proof, sealed motor housed in heavy-duty enclosure
  • UL certified to control all LED applications
  • Easy to override On/Off settings and 24 hr timer dial
  • Multiple ratings accommodate many different load requirements
  • Commercial-grade design with surge protection
  • Indoor/outdoor housings ideal for a variety of applications

Application: For lighting, pumps, signs, air conditioning, water heaters, fans, automatic On/Off control when operation is required at the same time every day

Specifications

Color Gray/Silver
Contact Configuration SPST DPST
Current Rating 40 A
Cycle Time 24 hr
Installation Type In-Wall
IP Rating NEMA 1
Material Metal
Suitable for CFL Fluorescent Xenon LED Halogen Incandescent HID
Type Mechanical
Voltage Rating 120/208/277 VAC

Warranty: 2 Years
