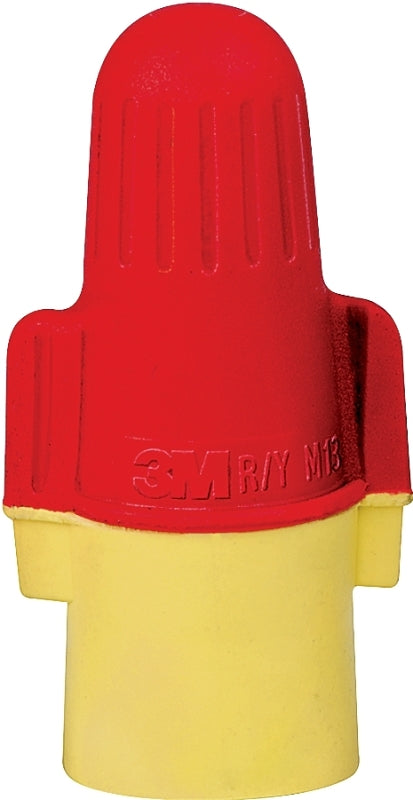

Replaces both red and yellow wing style connectors. Red with yellow skirt. Maximum operating temperature is 221 deg F. 600 V maximum. 22 AWG minimum wire gauge, 8 AWG maximum wire gauge. UL, CE, IEC and CSA agency approved.
Features
- Offers a strong bite in a pigtail application for a long-lasting connection
- An expandable spring lets you take in more wire uptake and reuse
- The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors
- Great for all types of jobs - from industrial and residential construction, to automotive, marine and appliance applications
- Use with copper conductors ranging from 22 to 8 AWG
- Built with polypropylene and thermoplastic elastomer material
- Red/yellow connector is flame-retardant and operates in temperatures up to 221 deg F
- Use on building wire rated 600 V and on signs, fixtures or luminaires rated 1000 V
Application: For industrial and residential construction, automotive, marine and appliance applications
Specifications
| Color | Red/Yellow |
|---|---|
| Contact Material | Steel |
| Height | 4.81 in |
| Housing Material | Polypropylene/Thermoplastic Elastomer |
| Mounting Type | Screw |
| Voltage Rating | 600 V |
| Width | 0.76 in |
| Wire Size | 22 to 8 AWG |
Warranty: Limited Lifetime
