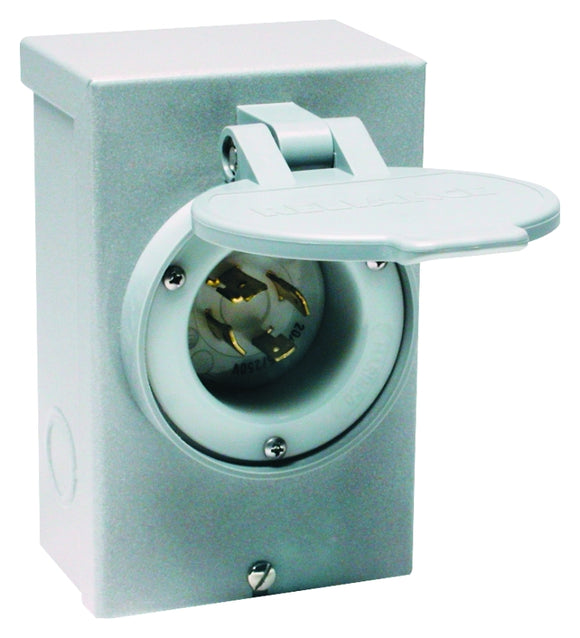

Our 30 A generator inlet box is the ideal solution for powering your home or business during outages. Designed for compatibility with any transfer switch, generator-ready load center and various stand-alone applications, this inlet box offers versatility and durability. Ideal for outdoor installation, it features four knockout combinations (1/2 in and 3/4 in) for easy setup wherever your generator is used. This inlet box can be directly wired to your transfer switch or electrical panel, simplifying the connection process. The exclusive patented design ensures ample wiring space, making rough-in installations quick and efficient. Additionally, the pre-wired built-in grounding and accessible wiring terminals offer fast and hassle-free installation.
Features
- Designed to handle up to 30 A with a 125/250 V power output, ideal for a wide range of generator applications
- Simplifies installation by providing a reliable and safe grounding system straight out of the box
- Spring-loaded, auto-closing cover - protects the inlet from debris and prevents insects like bees and spiders from nesting, ensuring long-term durability
- Outdoor-ready - NEMA 3R rated, engineered for outdoor use with a weather-proof design to withstand harsh conditions
- cULus listed - certified for safety and compliance, meeting industry standards for reliability and performance
- Generous wiring space for easy rough-in and connection
Specifications
| Color | Gray |
|---|---|
| Current Rating | 30 A |
| Dimensions | 6 in L x 4 in W x3-3/4 in H |
| Includes | Spring-Loaded Cover |
| Knockout Size | 1/2 3/4 in |
| Mounting Type | Surface |
| Number Of Knockouts | 4 |
| Number of Poles | 1 |
| Number Of Wires | 4 |
| Voltage Rating | 125/250 V |
| Wattage Rating | 7500 W |
| Wire Size | 8 10 |
