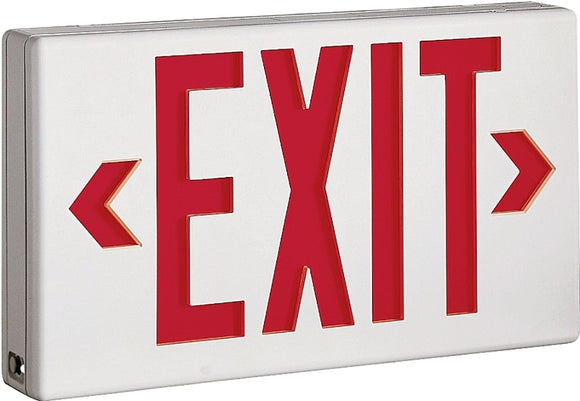

LPX Series LED Exit is a polycarbonate unit suitable for general-purpose applications. With the new advanced standard features and industry-leading innovations, they are now the most universal, energy-friendly and safest exits in their class. This Series is also easy to stock and install.
Features
- Injection-molded polycarbonate housing
- Ships with both red and green LED lamping
- Premium Nickel Cadmium battery
- Self-powered exits are fully charged in 24 hrs
- Snap-out or snap-in Chevron directional indicators
- Field selected red and green sign capability standard on all units
- Sure-Lites EZ Key patented external battery disconnect feature - prevents unnecessary battery drainage, saves on installation time
- Eagle Eye self-diagnostic feature
- All components are injection molded, color stable, high impact UL 94-5VA rated polycarbonate material
- Reinforcing ribs throughout to provide maximum strength connections
Specifications
| Battery Type | Nickel-Cadmium |
|---|---|
| Color | White |
| Color Temperature | 5000 K |
| Diameter | 4-3/4 in |
| Fixture Material | Polycarbonate |
| Includes | (1) Snap-Fit Canopy Status Indicator and Test Feature |
| Legend Size | 6 in |
| Mounting Type | Surface |
| Number of Lamps | 2 |
| Overall Depth | 2-1/8 in |
| Overall Height | 7-1/2 in |
| Overall Width | 13 in |
| Power Source | Battery |
| Voltage Rating | 120/277 VAC |
| Wattage Rating | 0.98/1.03 W |
Warranty: 1 Year
