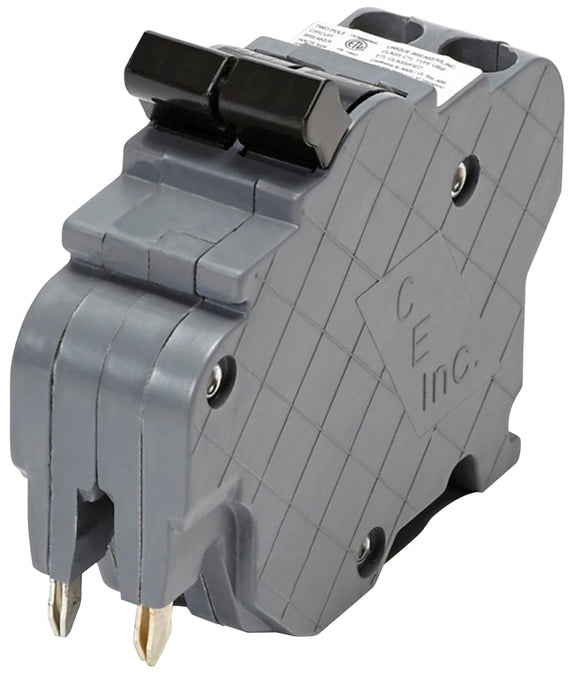

For Federal Pacific Load Centers. HACR rated. 120/240 VAC, 10,000 AIC.
Specifications
| Actuator Type | Magnetic Thermal |
|---|---|
| Current Rating | 50 A |
| Dimensions | 3.36 in L x 1 in W x 2.55 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Federal Pacific Electric load centers |
| Terminal Type | Lug |
| Type | Type NC |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 8 AWG |
California Proposition 65: This product is identified as presenting a risk of cancer. See www.P65Warnings.ca.gov.
