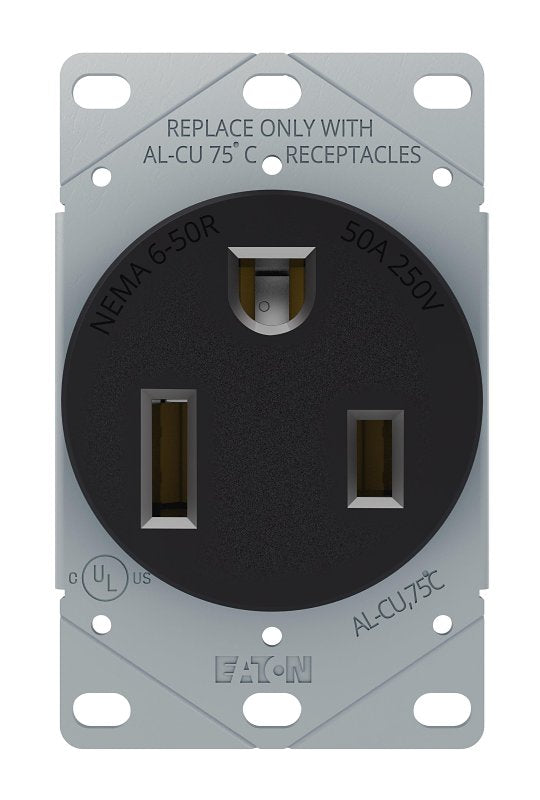

Eaton's new offering of flush mount power receptacles is specifically designed to meet the challenges of today's high amperage applications. From residential dryers and ranges to travel trailers and industrial welders, you can count on our products to deliver consistent, reliable power.
Features
- Heavy gauge galvanized steel mounting straps for corrosion resistance
- Terminal pressure plates for enhanced wire retention strength
- Surface receptacles have exclusive lay-in terminals that accept up to #4 AWG wire
- [object Object]
- [object Object]
- [object Object]
- [object Object]
Application: For commercial applications
Specifications
| Color | Black |
|---|---|
| Current Rating | 50 A |
| Dimensions | 2.17 in L x 2.25 in W x 3.69 in H |
| Material | Nylon |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 6-50R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -4 to 167 deg F |
| Voltage Rating | 250 V |
| Wire Size | 10 to 4 AWG |
| Wiring Type | Back |
