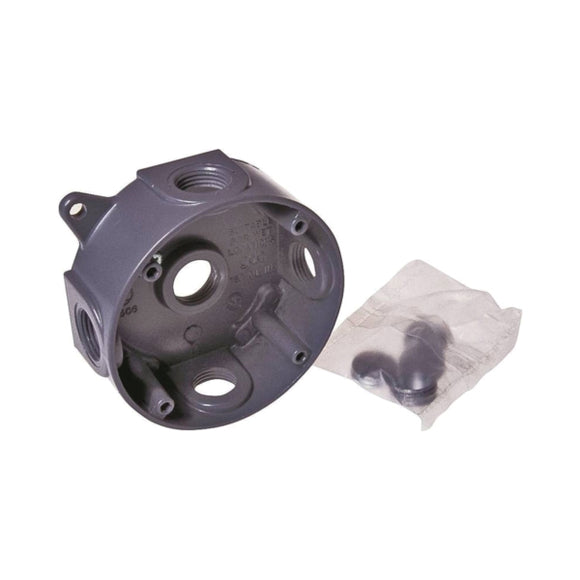

For use in branch circuit wiring in wet, damp or dry locations. Designed for use as a weatherproof junction box and used with Bell outdoor round cluster covers and round lamp holder combinations. Die-cast aluminum construction. Powder-coated finish. Reinforced connector outlets. Cast-in mounting lugs, four closure plugs included and installed ground screw. 16.1 cu-in capacity. Six 10-24 tapped holes. 4 in Dia x 1-1/2 in D. UL listed.
Features
- Reinforced connector outlets
- State of-the-art powder-coated finish provides maximum weatherability and scratch resistance
- Eight box mounting options with detachable lugs
- Internal hub threads comply with NEMA requirements and will accept all threaded fittings and threaded conduit
Application: For use in branch circuit wiring in wet, damp or dry locations and it is used as a weatherproof junction box and may be used with BELL round cluster covers and round lamp holder combinations
Specifications
| Color | Gray |
|---|---|
| Cubic Capacity | 16.1 cu-in |
| Dimensions | 5-1/4 in L x 1-5/8 in H |
| Finish | Powder-Coated |
| Hub Size | 1/2 in |
| Hub Type | Threaded |
| Includes | (4) 1/2 in Closure Plugs, Ground Screw, Gasket and Mounting Hardware |
| Material | Aluminum |
| Number of Outlets | 5 |
| Shape | Round |
