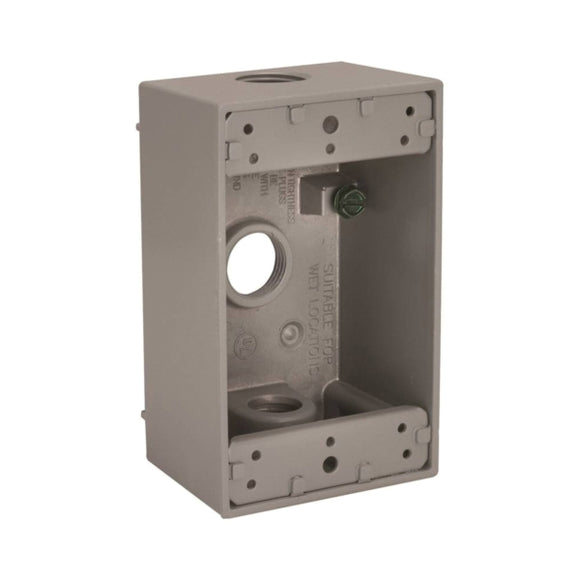

For use in wet, damp or dry locations. Three 1/2 in threaded outlets. 2 in deep with lugs. May be used as a weatherproof junction box or as a housing for receptacles, switches and GFCIs. Powder-coated finish. Eight box mounting options with detachable lugs provided. Includes two closure plugs. Ground screw installed. Multi-lingual instructions. Internal threads and hubs comply with NEMA requirements. Hubs accept all threaded fittings and threaded conduit. Die-cast aluminum construction. 18.3 cu-in capacity. 2 in D x 4-1/2 in L x 2-3/4 in W. UL listed. NEMA 3R rated.
Features
- Reinforced connector outlets
- State of-the-art powder-coated finish provides maximum weatherability and scratch resistance
- Eight box mounting options with detachable lugs
- Internal hub threads comply with NEMA requirements and will accept all threaded fittings and threaded conduit
Application: For use in branch circuit wiring in wet, damp or dry locations and it is used as a weatherproof junction box or as a housing for receptacles, switches and GFCI's
Specifications
| Color | Gray |
|---|---|
| Cubic Capacity | 18.3 cu-in |
| Dimensions | 4-1/2 in L x 2-13/16 in W |
| Finish | Powder-Coated |
| Hub Size | 1/2 in |
| Hub Type | Threaded |
| Includes | (2) 1/2 in Closure Plugs, Ground Screw, Gasket and Mounting Hardware |
| Material | Aluminum |
| Number of Gangs | 1 |
| Number of Outlets | 3 |
