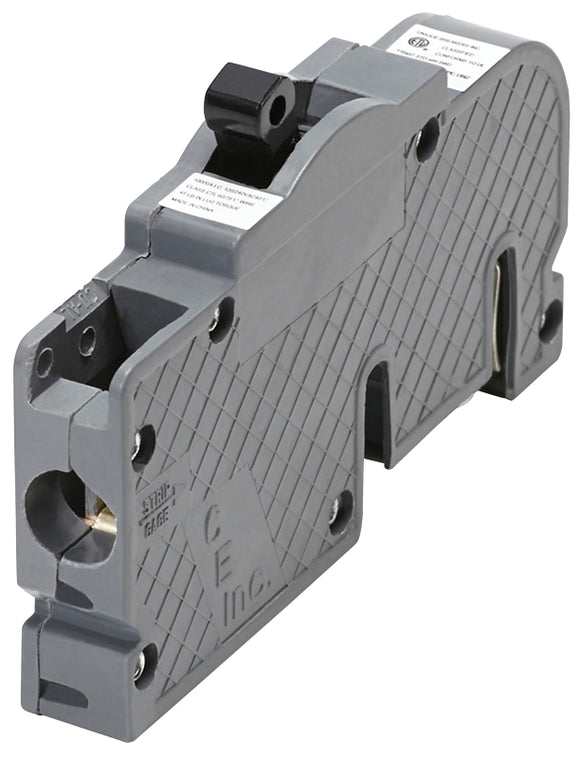

Replacement for Zinsco Q Series. Requires one 3/4 in space. HACR-(heating and air conditioning) rated. Tested and certified in accordance with the National Electric Code and conforms to the ANSI/UL Standard 489, 9th Edition. 120 VAC, 10,000 AIC. Carded.
Specifications
| Current Rating | 30 A |
|---|---|
| Dimensions | 4.81 in L x 0.75 W x 2.53 H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Operating Frequency | 50/60 Hz |
| Suitable for | Zinsco Q30 Series Load Centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type UBIZ |
| Voltage Rating | 120 V |
| Wire Size | 14 to 4 AWG |
California Proposition 65: This product is identified as presenting a risk of cancer. See www.P65Warnings.ca.gov.
