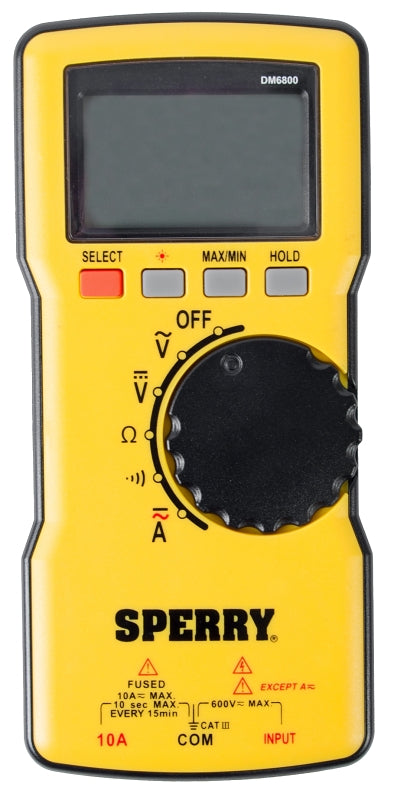

Sperry Instruments DM6800 Multimeter, 1999 Count Resolution, Digital, LCD Display, Yellow PACK OF: 1

$101.99 $127.49 Save $25.50

Sperry Instruments SKU: 7296254 Barcode: 35632201068

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Engineered to exceed the expectations of the professional electrician the Sperry Instruments DM6800 thin digital multimeter offers a durable and ergonomic impact-resistant design manufactured to the latest industry standards. At less than 3/4 in THK, this is the thinnest full sized multimeter yet. Engineered with the ability to test AC/DC voltage, amperage, resistance and continuity. Featuring improved audible and visual indicators and a backlit display. Requires two AAA batteries included in the package and designed with both an auto-off function to save battery life and a low battery indicator to ensure the user does not receive incorrect readings due to a low battery. Unit utilizes auto ranging capabilities that allow the meter to determine the resolution based on the application selected without requiring manual range changes. Capable of testing 600 V AC/DC, this unit also measures AC/DC amps (10 A), resistance (200, 2k, 20k, 200k, 2M, 20 MOhm) and continuity (audible). Durable housing is impact-resistant. Cat III (600 V), cETLus and CE-rated with a limited lifetime warranty to give our users the peace of mind they deserve. Ships with soft case, 40 in Cat II/III 600 V test leads and two AAA batteries included in the package.

Features

  • This 15 PK of Arrow® rivets feature a large flange that provides stronger riveting force, larger supporting surface and additional protection for soft materials, these rivets can be used for indoor and outdoor applications
  • Minimize dust while cutting with the optional dust chute, compatible with the DeWALT® AirLock™ system or standard 35 mm dust extractor
  • Instant continuity buzzer
  • Data hold feature captures reading on the display
  • Auto-power off and low battery indicator
  • Backlit 1999 count LCD screen

Specifications

Accuracy /-1 VAC /-0.8 VDC /-1.5 AAC /-1.2 ADC /-1 Resistance
Color Yellow
Dimensions 3.18 in L x 0.68 in W x 6.93 in H
Display Type Digital LCD
Includes (2) AAA Batteries
IP Rating IP20
Measuring Functions AC Voltage Current DC Voltage Resistance
Power Source Battery
Power Supply 2 to 600 VAC/VDC
Resistance 200 Ohm 2 kOhm 20 kOhm 200 kOhm 2M Ohm and 20M Ohm
Resolution 1999 Count
Temperature Rating 32 to 104 deg F

Warranty: Limited Lifetime
