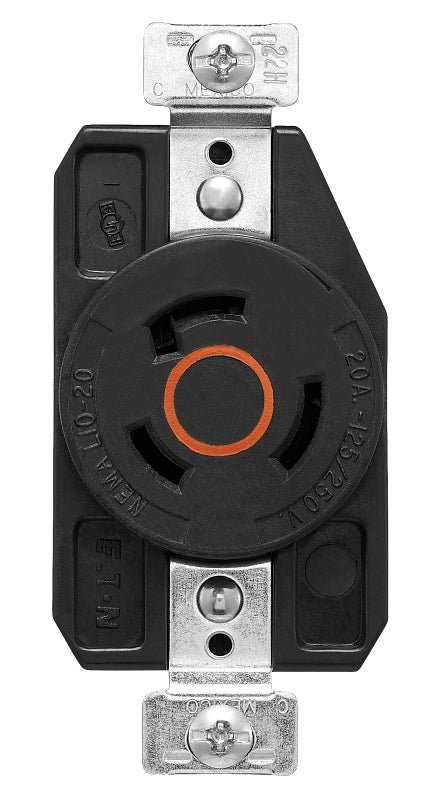

Arrow Hart AHCL1020R Locking Single Receptacle, 3 -Pole, 125/250 VAC, 20 A, Back and Side Wiring, NEMA: NEMA L10-20 PACK OF: 10

$431.88 $539.85 Save $107.97

Arrow Hart SKU: 7399611 Barcode: 32664758577

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

Sold Out

Arrow Hart Locking Single Receptacle, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Back and Side Wiring, 14 to 8 AWG Wire, NEMA L10-20, -40 to 158 deg F Operating, Nylon, Black/Orange, Dimensions: 3.64 in H x 1.63 in W x 1.06 in D

Features

  • Rugged glass filled nylon body
  • Clearly marked rating, NEMA configuration and approval listings on receptacle face
  • One piece brass contacts offer superior performance and minimal heat rise
  • Back and side wiring terminal clamps for easy, secure wiring

Application: For industrial applications

Specifications

Color Black/Orange
Current Rating 20 A
Dimensions 3.64 in H x 1.63 in W x 1.06 in D
Material Nylon
NEMA Configuration NEMA L10-20
Number of Poles 3
Number Of Wires 3
Operating Temperature -40 to 158 deg F
Voltage Rating 125/250 VAC
Wire Size 14 to 8 AWG
Wiring Type Back and Side
