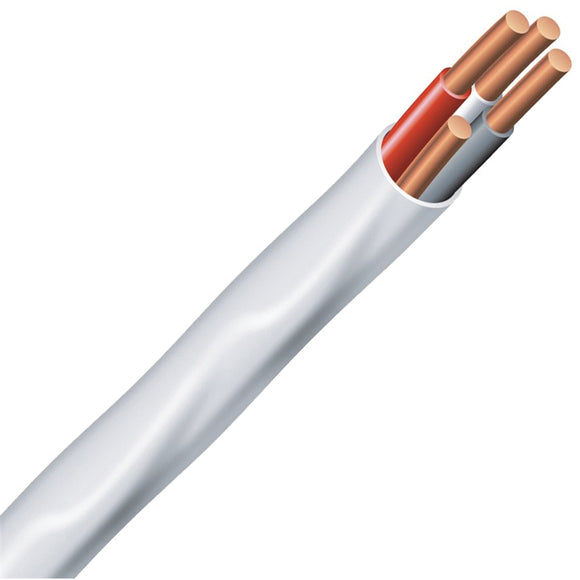

Romex 10/3NM-WGX250 Building Wire, 10 AWG Wire, 3-Conductor, 250 ft L, Copper Conductor, PVC Insulation, Nylon Sheath PACK OF: 1

$564.84 $706.05 Save $141.21

Romex SKU: 8154080

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Southwire® Romex® brand SIMpull® NM-B (non-metallic sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified in the national electrical code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 V.

Specifications

Conductor Insulation PVC
Conductor Material Copper
Current Rating 30 A
Length 250 ft
Number of Conductors 3
Operating Temperature 90 deg C
Sheath Color Pink
Sheath Material Nylon
Strands per Conductor 1
Type NM-B
Voltage Rating 600 V
Wire Size 10 AWG
