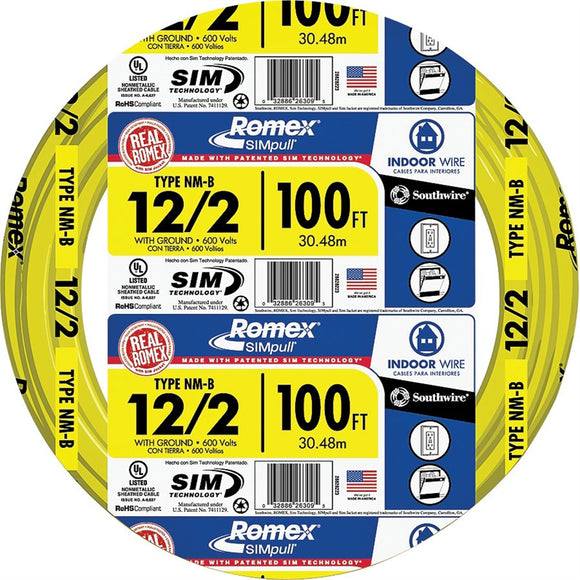

Romex 12/2NM-WGX100 Building Wire, 12 AWG Wire, 2 -Conductor, 100 ft L, Copper Conductor, PVC Insulation PACK OF: 1

$149.00 $186.25 Save $37.25

Romex SKU: 8970469

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Romex Building Wire, NM-B, THHN, 12 AWG Wire, 100 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, PVC Conductor Insulation, Solid, Nylon Sheath, Yellow Sheath, 600 V, 20 A, 90 deg C Operating

Features

  • Copper conductors are annealed copper
  • Stranded conductors are compressed stranded
  • Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation
  • Made in America

Application: For both exposed and concealed work in normally dry locations, primarily use in residential wiring as branch circuits for outlets, switches and other loads

Specifications

Conductor Insulation PVC
Conductor Material Copper
Current Rating 20 A
Length 100 ft
Number of Conductors 2
Operating Temperature 90 deg C
Sheath Color Yellow
Sheath Material Nylon
Stranded/Solid Solid
Strands per Conductor 1
Type NM-B, THHN
Voltage Rating 600 V
Wire Size 12 AWG
