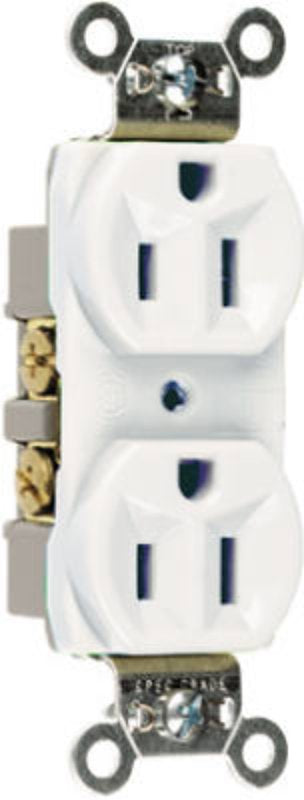

These sturdy receptacles offer excellent value. They deliver rugged construction, including impact-resistant nylon faces and corrosion-resistant plated steel straps. Screw-pressure-plate back wiring ensures excellent electrical connections and easy installation.
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Eight hole internal screw-pressure-plate back wire terminals accept 10 to 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- Construction-grade receptacle
Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Dimensions | 1.322 in W x 0.78 in D x 3.281 in H |
| Material | Brass/Nylon/PVC/Steel |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -40 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back Side |
