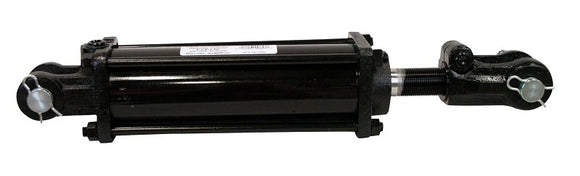

SMV Industries 2.5X8 ASAE Hydraulic Cylinder, ASAE, Double Acting, 8 in L Stroke, 2-1/2 in Bore, 1-1/8 in Dia Rod PACK OF: 1

$152.00 $190.00 Save $38

SMV Industries SKU: 382606 Barcode: 12947008520

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

SMV Industries Hydraulic Cylinder, ASAE, Double Acting, Bore Size: 2-1/2 in, Rod Diameter: 1-1/8 in, 2500 psi, Stroke Length: 8 in, Retracted Length: 20-1/4 in, Black

Features

  • Bore - piston diameter inside the cylinder tube, the larger bore equals greater lifting force
  • Rod diameter - diameter of the piston or rod, larger diameter equals greater lifting force
  • Stroke - cylinder travel meaning measured dimensions of the extended length of the rod minus the retracted length (measured center pin to center pin)
  • Clevis - most common end type, consisting of two, one on each end, with holes drilled for pins to go thru
  • Tie rod - most common in agricultural applications, tie rods are 4 long, threaded bolts, running the length of the cylinder, to provide extra stability
  • Dual (or double) acting - cylinder works under pressure in a pulling or pushing function
  • O-ring static seal and piston seal is 2 back up rings plus O-ring
  • Rod end cap - 1 NPT port, base end cap - 2 NPT ports

Specifications

Bore Size 2-1/2 in
Color Black
Pressure Rating 2500 psi
Retracted Length 20-1/4 in
Rod Diameter 1-1/8 in
Stroke Length 8 in
Type ASAE Double Acting
