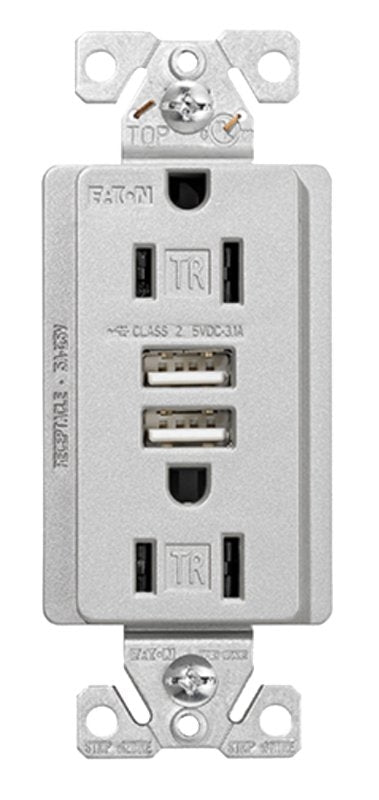

The Arrow Hart 3.1 A USB duplex receptacle provides quick and convenient access to charge virtually any electronic component including smart phones, tablets, e-readers, cameras and MP3 players. The specification-grade device is built-to withstand the tough demands of the commercial environment while also providing code compliance with 2011 NEC Article 406.12 that requires tamper-resistant receptacles in dwelling units.
Features
- Standard AC receptacle with two USB-Charging ports for conveniently charging most electronic components
- Dual USB-Charging ports charge most compatible electronic devices that charge via a 5 V power adapter
- Tamper-resistant construction
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and 14 AWG wire
- Triple wipe blade contacts and double-wipe ground contacts to insure long term plug retention
- Replaces a standard duplex receptacle
Specifications
| Color | Silver Granite |
|---|---|
| Current Rating | 3.1 a USB 15 a Receptacle |
| Dimensions | 1.47 in D x 4.19 in H |
| Frequency Rating | 140 kHz |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Number of USB Ports | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 125 VAC Receptacle 5 VDC USB |
| Wire Size | 12 to 14 AWG |
| Wiring Type | Back Side |
