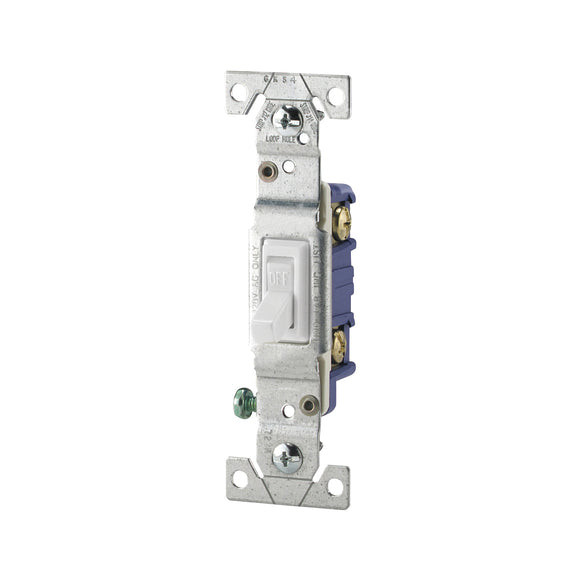

Eaton Wiring Devices 1301-7W Series Toggle Switch, White, 15 A, 120 V, 4.2 in L x 1.3 in W x 1.103 in D Dimension PACK OF: 10

$13.23 $16.54 Save $3.31

Eaton SKU: 2075349 Barcode: 32664750878

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for Feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

Features

  • Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
  • Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
  • Wire looper speeds termination of both #14 and #12 AWG wire

Specifications

Action Toggle
Actuator Type Toggle
Color White
Current Rating 15 A
Dielectric Strength 1500 V
Dimensions 4.2 in L x 1.3 in W x 1.103 in D
Housing Material Polycarbonate
Mounting Type Wall
Number of Poles 1
Temperature Rating -20 to 60 deg C
Terminal Type Push-In
Voltage Rating 120 V
Wattage Rating 0.5 hp
