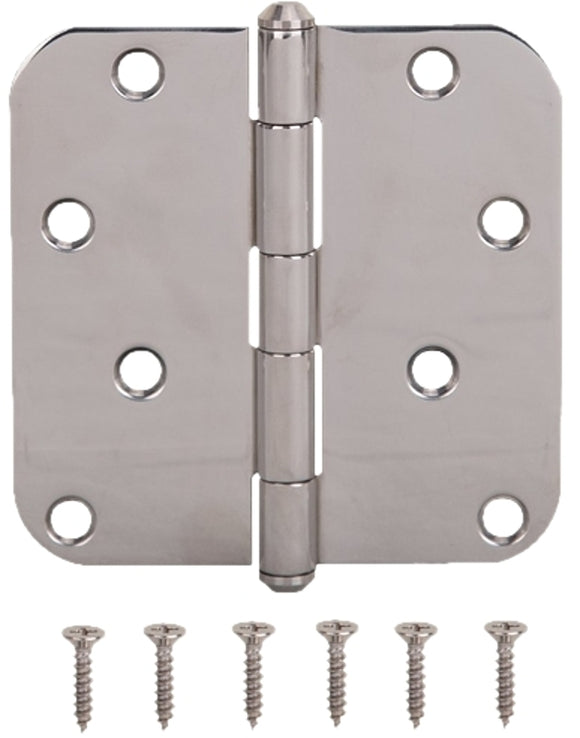

The ProSource door hinge is made of steel. The hinge offers a unique and creative hardware solutions for your home. Radius corner. It's 2.2 mm thick and the screws are included.
Features
- For residential doors up to 1-3/4 ft thick
- Five knuckles, loose pin
Application: For lightweight residential doors in low frequency applications
Specifications
| Color | Mirror Polished |
|---|---|
| Corner Radius | 5/8 in |
| Dimensions | 4 x 4 in |
| Door Leaf Height | 4 in |
| Door Leaf Thickness | 2.2 mm |
| Door Leaf Width | 4 in |
| Door Thickness | 1-3/4 in |
| Finish | Stainless Steel |
| Includes | Screws |
| Material | Stainless Steel |
| Mounting Hole Diameter | 7 mm |
| Mounting Type | Screw |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 8 |
| Pin Diameter | 6 mm |
| Pin Type | Loose |
| Range of Motion | 180 deg |
Documents
California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): 2,4-Diaminoanisole, Topiramate. See www.P65Warnings.ca.gov.
