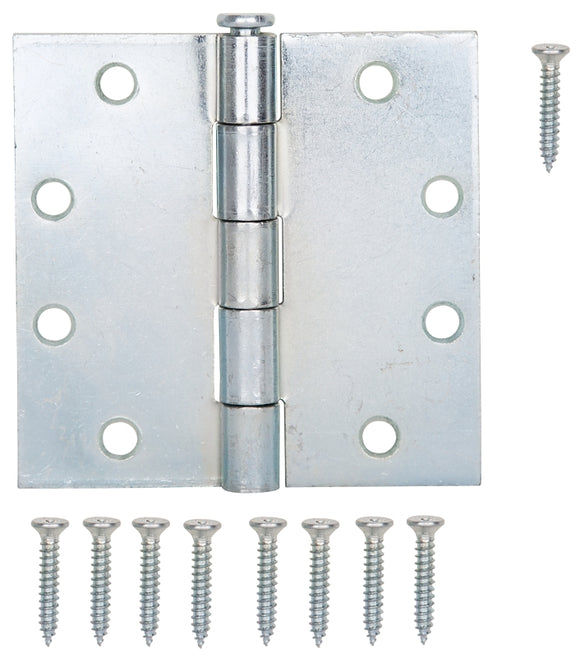

The ProSource utility hinges are constructed of high-quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.
Features
- Steel with zinc-plated finish
- Square corner
- Five knuckles, removable pin
- For general utility use on lightweight doors
Specifications
| Color | Silver |
|---|---|
| Dimensions | 4-1/2 in L x 4-1/2 in W |
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 3.5 mm |
| Door Leaf Width | 2 in |
| Finish | Zinc |
| Hole Spacing | 8 mm |
| Includes | Mounting Hardware |
| Knuckle Diameter | 8 mm |
| Knuckle Length | 21 mm |
| Material | Steel |
| Mounting Hole Diameter | 7 mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 8 |
| Pin Diameter | 7 mm |
| Pin Type | Removable |
| Range of Motion | 180 deg |
| Weight Capacity | 90 lb |
California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): Lead. See www.P65Warnings.ca.gov.
