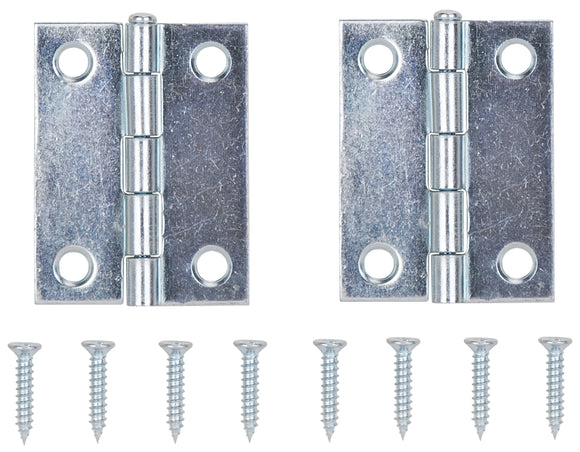

The ProSource utility hinges are constructed of high-quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.
Features
- Steel with zinc-plated finish
- Square corner
- Five knuckles, removable pin
- For general utility use on lightweight doors
Specifications
| Color | Silver |
|---|---|
| Dimensions | 2 L x 1-1/2 W |
| Door Leaf Height | 1-1/2 in |
| Door Leaf Thickness | 1.5 mm |
| Door Leaf Width | 5/8 in |
| Finish | Zinc |
| Hole Spacing | 1-3/8 in |
| Includes | Mounting Hardware |
| Knuckle Diameter | 4 mm |
| Knuckle Length | 11 mm |
| Material | Steel |
| Mounting Hole Diameter | 5 mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 4 |
| Pin Diameter | 3 mm |
| Pin Type | Removable |
| Range of Motion | 180 deg |
| Weight Capacity | 10 lb |
California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): Lead. See www.P65Warnings.ca.gov.
