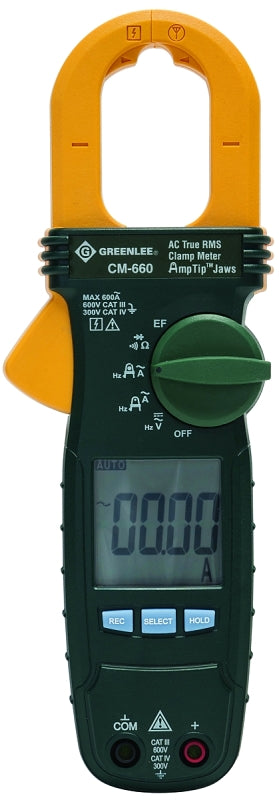

Measures AC amperage, AC/DC voltage and resistance. True RMS for accurate measurements when the voltage or current waveform is distorted by non-linear loads. Amperage measurement 400, 600 A. Voltage measurement 400, 600 V. 3-1/2-digit LCD display. Jaw opens 1.38 in. Auto-power off for longer battery life. Measurement category Cat III, 600 V per UL 3111-1.
Features
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance and frequency
- Tests continuity and diodes
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes such as non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum and Average readings
Specifications
| Display Type | LCD |
|---|---|
| Includes | (2) 1.5 V AAA Batteries Test Leads Carrying Case |
| Jaw Opening Size | 1.18 |
| Power Source | AAA Battery |
| Resistance | 2000 |
| Resolution | 6000 Count |
