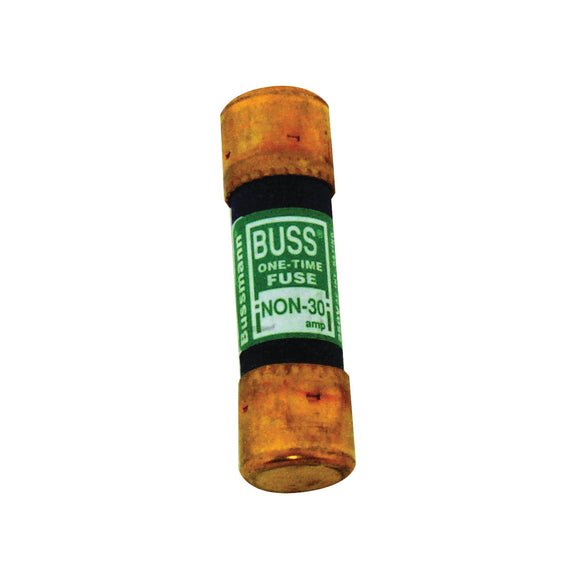

Bussmann NON-30 Fuse, 30 A, 250 VAC, 125 VDC, 50 kA Interrupt, Melamine Body, Cartridge Fuse, 10/PK PACK OF: 10

$36.24 $45.30 Save $9.06

Bussmann SKU: 4183810 Barcode: 51712101592

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General-purpose fuses have no time delay and protect fuse panels, appliances and branch circuits.

Features

  • Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
  • NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
  • Basic protection 250 V NON class K5 and H general-purpose, non-current-limiting, one-time fuses

Application: For agricultural, commercial and industrial applications as well as air conditioning, pumps, appliances, residential fuse panels and other equipment

Specifications

Body Material Melamine
Current Rating 30 A
Diameter 0.56 in
Element Type Single
Fuse Type Cartridge
Interrupt Rating 50 kA
Length 2 in
Rejection/Non-Rejection Non-Rejection
Voltage Rating 250 VAC, 125 VDC
