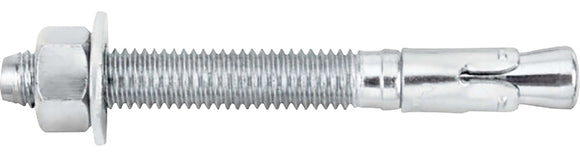

The Power-Stud® Plus SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc-plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
Features
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
Application: For structural connections, safety-related attachments, interior applications, seismic and wind loading and tension zone applications
Specifications
| Diameter | 3/8 in |
|---|---|
| Finish | Zinc |
| Includes | (50) Wedge Anchors |
| Material | Carbon Steel |
| Maximum Work Thickness | 1-3/4 in |
| Minimum Embedment Depth | 1-5/8 in |
| Overall Length | 3-3/4 in |
| Shear Strength | 2540 lb |
| Tensile Strength | 3100 lb |
| Thread Length | 2-3/8 in |
| Thread Size | 3/8-16 |
| Thread Type | UNC |
California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm. See www.P65Warnings.ca.gov.
