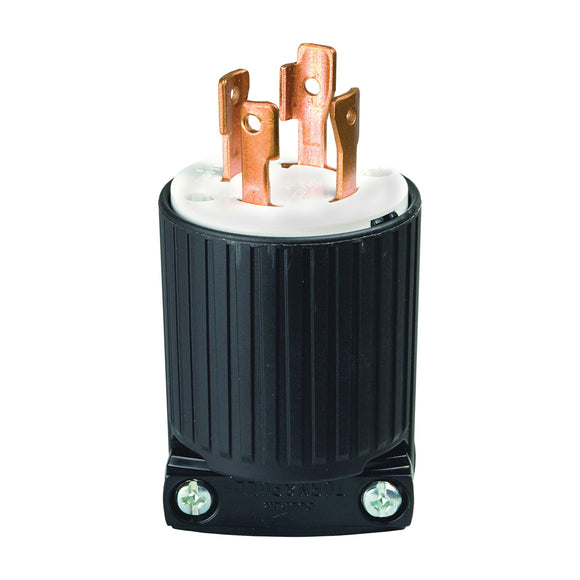

Abuse-resistant thermoplastic construction. Back wire terminal clamps for easy secure wiring. External cable clamp provides firm strain relief. Individual wiring compartments with tapered channel for easy insertion of wires. Clear cover over wiring compartments allow easy inspection of wiring terminations. Triple combination head screws standard - slot/Phillips/Robertson for use in the US and Canada. Clearly marked rating, standard compliances on face. 30 A - 125/250 V. NEMA L14-30.
Features
- Abuse-resistant thermoplastic construction
- Back wire dead-front design
- External cable clamp provides firm strain relief
- Back wire terminal-clamps for easy secure wiring
- Triple combination head screws standard - Slot/Phillips/Robertson for use in the USA and Canada
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Clearly marked rating, NEMA configuration and standard compliances on face of plug or connector
Application: For industrial applications
Specifications
| Cable/Wire Size | 1/4 to 11/16 in |
|---|---|
| Color | Black/White |
| Current Rating | 30 A |
| Dimensions | 2-3/4 in L x 2 in W |
| Grounding Type | Grounded |
| Material | Thermoplastic |
| NEMA Configuration | NEMA L14-30 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Operating Temperature | -20 to 60 deg C |
| Type | Locking |
| Voltage Rating | 125/250 V |
