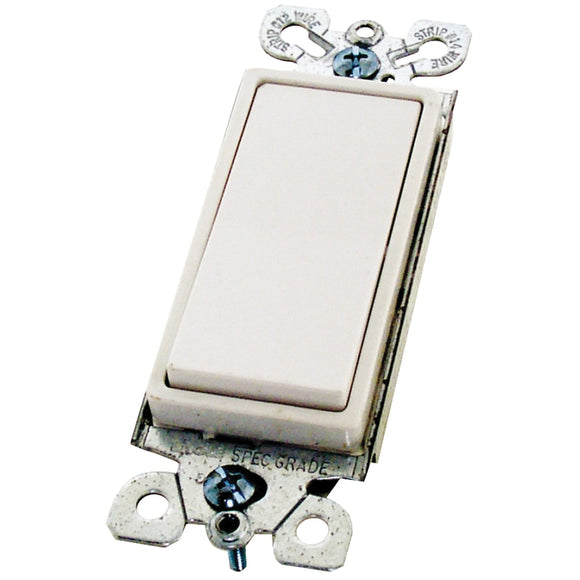

Decorator switches feature ultrasonic welding and integrated construction of the strap and body provide Great integrity. Back wire clamps on the side terminals provide for easy installation of #12 and #14 wire. Re-designed paddle for easier actuation and quiet operation. Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance. Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility. Long, broad mounting strap virtually eliminates floating installations. Patented built-in wire stripper for #12 and #14 wire to speed installation. Stippled ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire.
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Back wire clamps on side terminals provide for easy installation of #12 and 14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Lighted switches glow in OFF position
- Redesigned paddle for easier actuation and quiet operation
Application: For use on fluorescent lighting fixtures and a broad variety of applications
Specifications
| Color | White |
|---|---|
| Contact Configuration | SPST |
| Contact Material | Brass |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.44 in W x 0.97 in D |
| Housing Material | Thermoplastic |
| Mounting Type | Flush |
| Number of Poles | 1 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Push Wire |
| Voltage Rating | 120/277 V |
