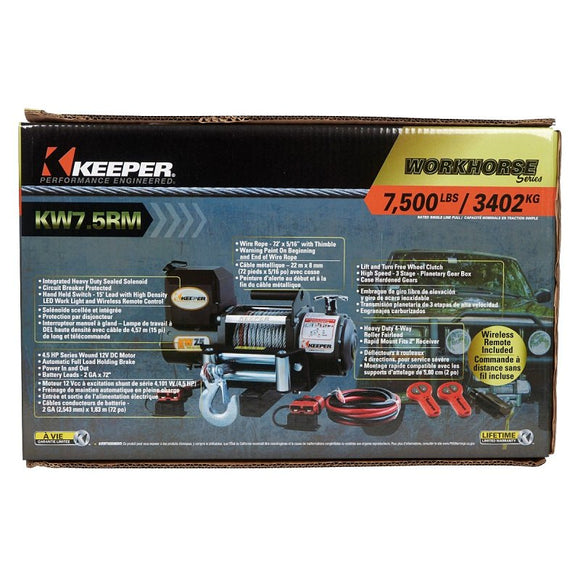

The KW7.5RM (rapid mount) is packed with features essential for efficient and reliable portable operation. 4.5 hp series wound 12 VDC motor, automatic full load holding brake, 72 ft of 5/16 in wire rope with clevis hook, lift & turn free-spool clutch, high speed planetary gear box, case hardened gears, heavy-duty 4-way roller fairlead, wireless remote and handheld switch with 15 ft lead and LED light. Power in/power out operation. Slides into Any Class III 2 in receiver hitch. 7500 lb of pulling power (single line-rated).
Features
- Portable winching power to fit many vehicles
- Lift and turn-free spool clutch
- [object Object]
- [object Object]
Application: For general portable use, object recovery, self-recovery, trailer, vehicle
Specifications
| Finish | Powder-Coated |
|---|---|
| Gear Ratio | 1801 |
| Gear Type | 3-Stage Planetary |
| Height | 12.25 in |
| HP Rating | 4.5 hp |
| Includes | 75122001 2 in Receiver Hitch Mount for KW7.5RM Only KTA14126 Wireless Remote Switch KWA14122 Handheld Lighted Remote on 15 ft Lead KWA14510 Roller Fairlead KWA14607 2 AWG Wire at 25 ft and 6 ft with Quick Connect Trailer Wiring Kit |
| Length | 23.45 in |
| Line Speed | 8 ft/min |
| Power Source | Electric |
| Power Supply | 12 VDC |
| Weight Capacity | 7500 lb |
| Width | 21.35 in |
| Wire Rope Diameter | 5/16 in |
| Wire Rope Length | 72 ft |
| Wire Rope Material | Steel |
