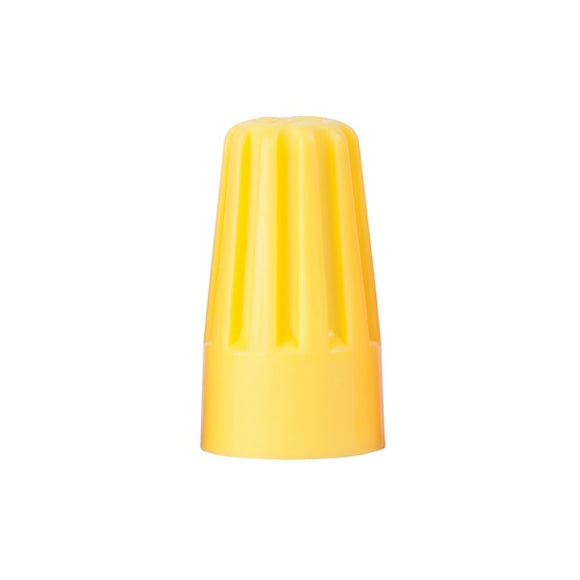

WireGard™ twist on wire connectors are designed for general-purpose applications requiring the connection of 2 or more copper wires. WireGard™ connectors feature a straight type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull-out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions. The high-dielectric shell also features a deep skirt design to prevent exposure of bare wire. Flame-retardant properties resist heat distortion up to 105 deg C. Color coded for quick and easy size selection.
Features
- Designed to require fewer turns to reach required torque and meet or exceed UL pull-out and dielectric test requirements
- Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Application: For air conditioners, ceiling fans, doorbells, indoor lighting, switches, thermostats, ballasts, large and small appliances
Specifications
| Color | Yellow |
|---|---|
| Contact Coating | Zinc |
| Contact Material | Steel |
| Height | 15/16 in |
| Housing Material | Polypropylene |
| Length | 35/64 in |
| Mounting Type | Screw |
| Voltage Rating | 300/600 V |
| Width | 35/64 in |
| Wire Size | 18 to 10 AWG |
