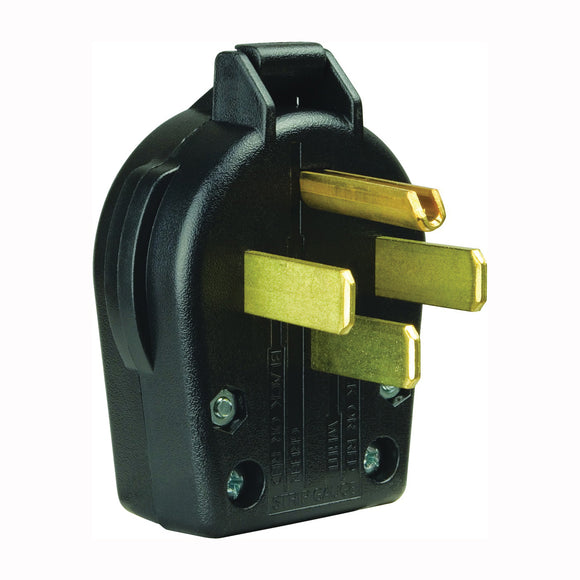

Heavy-duty. Blades included for 30 and 50 A configurations. Terminals have pressure plates to protect wires. UL and cUL listed, NOM certified, meets all CSA requirements. NEMA 14-30 or 14-50.
Features
- For replacement use in newer homes with 4-wire range and dryer connection points
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- Body made of durable thermoplastic
Specifications
| Cable/Wire Size | 1-1/8 in |
|---|---|
| Color | Black |
| Connection Type | Screw |
| Current Rating | 30/50 A |
| Dimensions | 3.31 in L x 2.87 in W x 1.37 in D |
| Grounding Type | Grounded |
| Material | Thermoplastic |
| NEMA Configuration | NEMA 14-30P, 14-50P |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Operating Temperature | -20 to 60 deg C |
| Type | Angled, Universal Power |
| Voltage Rating | 125/250 V |
