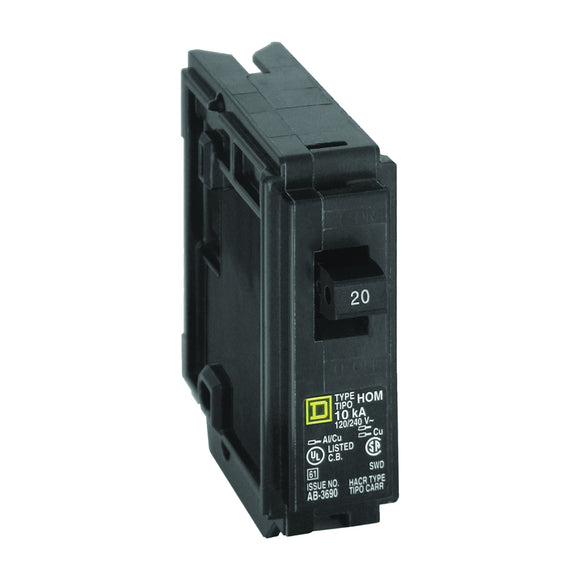

Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline™ circuit breakers are the smart, safe, reliable choice.
Features
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- HOM ground fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- Square D arc fault circuit interrupters (1-pole, 15 A and 20 A)
- Square D combination arc fault circuit interrupters (1-pole, 15 A and 20 A)
- Available accessories include handle attachments, filler plates and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
Specifications
| Color | Black |
|---|---|
| Current Rating | 20 A |
| Dimensions | 3.13 in H x 1 in W x 2.98 in D |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number of Spaces | 1 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 104 deg F |
| Terminal Type | Clamp |
| Trip Sensitivity | 27 A |
| Trip Type | Fixed |
| Voltage Rating | 120 V |
| Wire Size | 14 to 10, 14 to 8 AWG |
