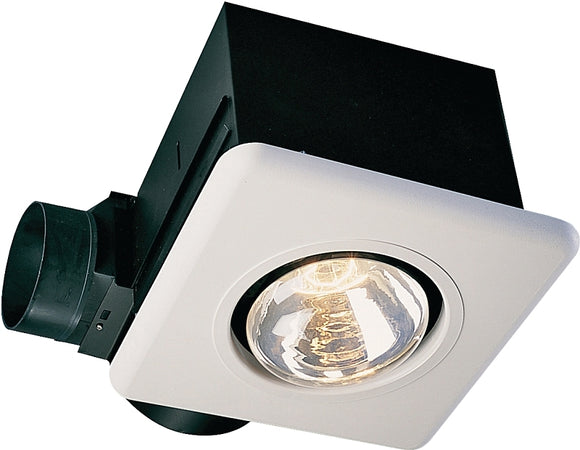

One-piece polymeric blower wheel. White polymeric grill. Dimensions of 10 in x 10 in. One 250 W maximum, type R40 bulb, medium base infrared lamp to deliver silent heat to the room, bulb not included. Rated type IC for ceilings insulated to R-40. Plastic collar for 4 in duct connection comes complete with built-in non-metallic back draft damper for quiet operation. UL listed. HVI2100 certified.
Features
- Utilizes one 250 W maximum type R40 medium base infrared lamp
- Rated type IC for ceilings insulated to R-40
- Easily installs using the included adjustable hanging brackets
- 4 in plastic damper protects against backdrafts and ensures quiet operation
- All functions can be wired to operate separately
- White, polymeric grill (flame retardant ABS UL rated 94-5V) secured in place with torsion springs, easily removed if necessary
- Blower wheel one-piece polymeric wheel, 3-7/8 in Dia, 2-1/2 in wide with 21 fins
- Heavy-duty motor plug in 2-pole motor, lifetime lubrication, thermally protected
- Plastic collar for 4 in duct connection, comes complete with built-in non-metallic back draft damper for quiet operation
- Ventilating area for bathrooms up to 70 sq-ft
Specifications
| Air Flow Rate | 70 cfm |
|---|---|
| BTU Rating | 850 Btu |
| Current Rating | 2.6 A |
| Fan Type | Exhaust |
| Grille Height | 10 in |
| Grille Material | Polymer |
| Grille Width | 10 in |
| Includes | Blower Motor Damper Duct Collar Exhaust Fan Housing Grill with Glass Light Lens Hanger Bars User Manual |
| Installation Type | Hanger Bar |
| Opening Height | 8 in |
| Opening Width | 8-1/4 in |
| Voltage Rating | 120 V |
Warranty: Limited Lifetime
