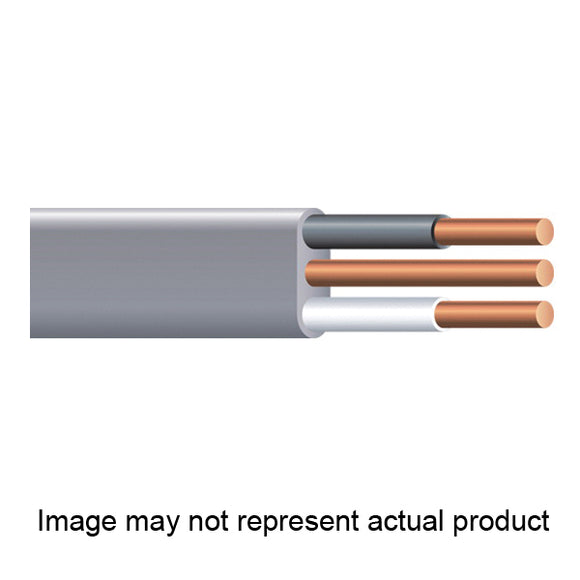

Southwire 14/2UF-WGX100 Series Building Wire, Gray Sheath, 14 AWG Wire, 2-Conductor, 100 ft L, Copper Conductor PACK OF: 1

$131.99 $164.99 Save $33

Southwire SKU: 6963318 Barcode: 9326500607

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Southwire® copper UF-B cable is generally used as feeder to outside post lamps, pumps and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 V.

Specifications

Conductor Insulation PVC
Conductor Material Copper
Current Rating 15 A
Length 100 ft
Number of Conductors 2
Operating Temperature 90 deg C
Sheath Color Gray
Sheath Material Nylon
Strands per Conductor 1
Type UF-B
Voltage Rating 600 V
Wire Size 14 AWG
