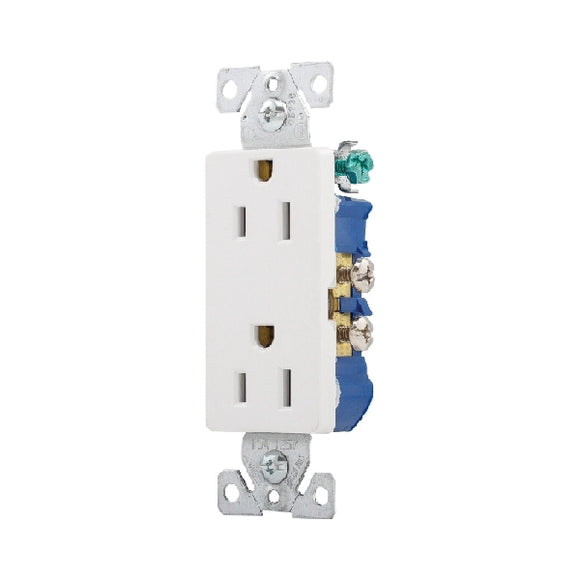

Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility. Terminal screws backed out-ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Features
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable
- Terminal screws are backed out and ready to wire
- Extra long and extra wide mounting straps
- Side wire terminals accept up to #10 solid or stranded wire
Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Dimensions | 1.3 in L x 0.69 in W x 3.81 in H |
| Material | Thermoplastic |
| Mounting Type | Flush |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
