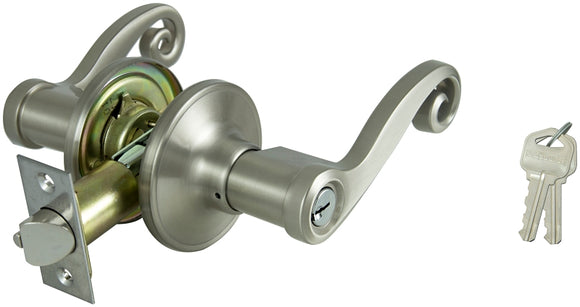

The leverset are for keyed exterior doors. Both levers locked or unlocked by key outside or turn button inside. The levers have all-metal components with constructed of die-cast materials.
Features
- KW1 keyway
- For residential use
- 1-3/8 to 1-3/4 in door thickness
- Satin nickel finish
Application: For keyed exterior doors
Specifications
| Backset Size | 2-3/8 x 2-3/4 in |
|---|---|
| Bolt Throw Size | 1/2 in |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin |
| Dimensions | 478 x 380 x 283 mm |
| Door Handing | Reversible |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Key Type | Alike |
| Keyway Type | KW1 |
| Latch Type | 6-Way |
| Material | Zinc |
| Number of Cylinders | 1 |
| Package Type | Visual Pack |
| Rose/Base Dimensions | 65.7 mm |
| Security Grade | 3 |
| Strike Size | 44.8 x 57 mm |
| Strike Type | Full Lip Round Corner |
| Throw Length | 1/2 in |
California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): 2,4-Diaminoanisole, Topiramate. See www.P65Warnings.ca.gov.
