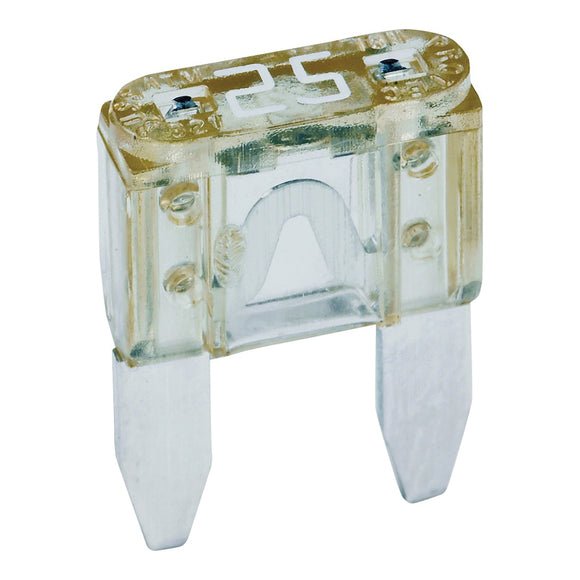

ATM fuses use the same universal color-coding as ATC fuses and feature an enclosed element offering protection against shocks and sparks, plus corrosion resistance for longer service life.
Features
- Halogen-free
- Test points on fuses to speed troubleshooting
- Industry standard color-coded by amp rating
Application: For automotive, low voltage control circuits
Specifications
| Body Material | Plastic |
|---|---|
| Color | Clear |
| Contact Material | Zinc |
| Current Rating | 25 A |
| Element Type | Single |
| Fuse Type | Blade |
| Interrupt Rating | 1 kA |
| Length | 0.64 in |
| Operating Temperature | -40 to 100 deg C |
| Rejection/Non-Rejection | Non-Rejection |
| Resistance | 2.56 mOhm |
| Voltage Rating | 32 V |
