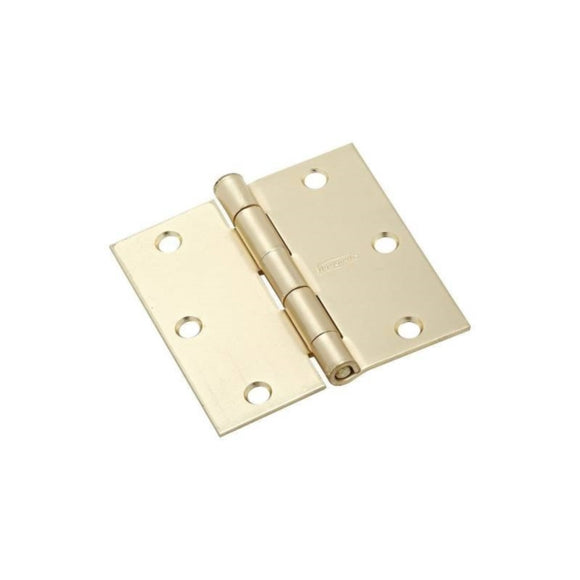

National Hardware N830-332 Square Corner Door Hinge, 0.272 in H Door Leaf, 0.08 in Thick Door Leaf, Steel, Satin Brass PACK OF: 5

$84.54 $105.68 Save $21.14

National Hardware SKU: 7171325 Barcode: 8.87E+11

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

National Hardware Square Corner Door Hinge, 50 lb Weight, Door Leaf Height: 3-1/2 in, Door Leaf Thickness: 0.08 in, Frame Leaf Height: 3-1/2 in, Frame Leaf Width: 3-1/2 in, Number of Knuckles: 5, Pin Type: Removable, Pin Diameter: 0.234 in, Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.272 in, Steel, Satin Brass, Dimensions: 3-13/16 in L x 3-1/2 in W, Includes: (5) Knuckles and #9 Flat Head Screws

Features

  • Heavy-gauge cold-rolled steel for added strength
  • Flush pin for finished appearance
  • Five-knuckle, full mortise design
  • Square corner design
  • Countersunk screw holes with fasteners included
  • Removable pin for easy installation and removal

Application: For interior residential doors

Specifications

Dimensions 3-13/16 in L x 3-1/2 in W
Door Leaf Height 3-1/2 in
Door Leaf Thickness 0.08 in
Finish Satin Brass
Frame Leaf Height 3-1/2 in
Frame Leaf Width 3-1/2 in
Includes (5) Knuckles and #9 Flat Head Screws
Material Steel
Mounting Hole Diameter 0.272 in
Mounting Type Mortise
Number of Knuckles 5
Number of Mounting Holes 6
Pin Diameter 0.234 in
Pin Type Removable
Weight Capacity 50 lb
