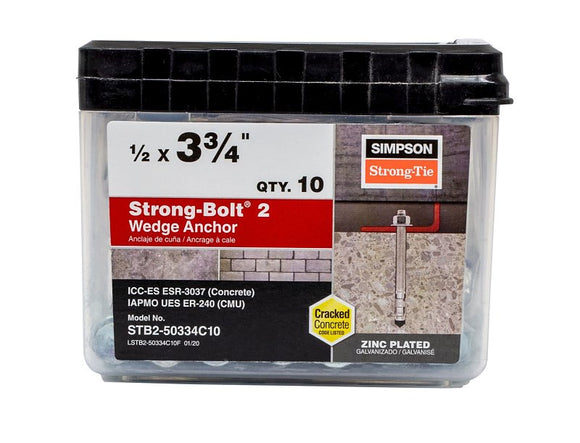

Simpson Strong-Tie Strong-Bolt 2 STB2-50334C10 Wedge Anchor, 1/2 in Dia, 3-3/4 in L, Carbon Steel, Zinc Plated PACK OF: 4

$71.95 $89.94 Save $17.99

Simpson Strong-Tie SKU: 8229585 Barcode: 7.07E+11

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

Features

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 in and 3-1/4 in
  • Tested per ACI355.2 and AC193
  • Made from zinc plated carbon steel

Application: For cracked and uncracked concrete and masonry applications

Specifications

Color Silver
Diameter 1/2 in
Drill Size 1/2 in
Finish Zinc Plated
Length 3-3/4
Material Carbon Steel
Minimum Concrete Thickness 3-1/4 in
Minimum Embedment Depth 2-3/4 to 4-1/2 in
Shear Strength 2040 to 4120 lb
Tensile Strength 115000 psi
Thread Length 2-1/16 in

Warranty: Limited

Documents

California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): Tetrabromobisphenol A, Epichlorohydrin. See www.P65Warnings.ca.gov.
