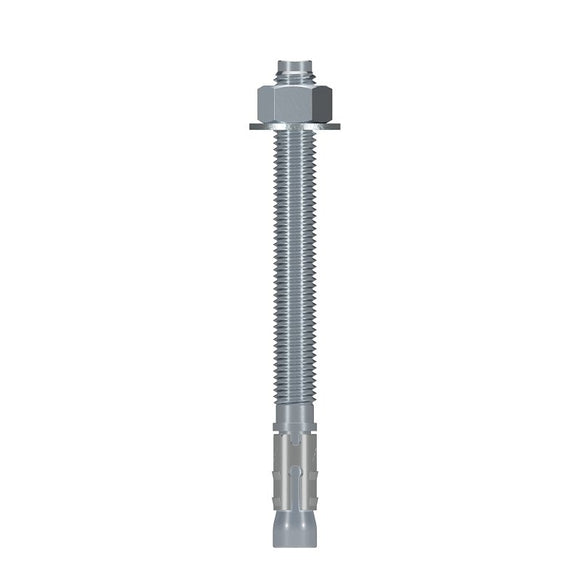

Simpson Strong-Tie Strong-Bolt 2 STB2-62700P1 Wedge Anchor, 5/8 in Dia, 7 in OAL, Carbon Steel, Zinc PACK OF: 10

$71.88 $89.85 Save $17.97

Simpson Strong-Tie SKU: 8229692 Barcode: 7.07E+11

15 Day
Return Policy

Ships Fast
in 24 hours

Reduced
Emissions

In stock!

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

Features

  • Chamfered top designed to prevent mushrooming during installation
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 and 3-1/4 in
  • Standard (ANSI) fractional sizes, fits standard fixtures and installs with common drill bit and tool sizes

Specifications

Color Gray
Diameter 5/8 in
Drill Size 5/8 in
Finish Zinc
Material Carbon Steel
Maximum Work Thickness 5-1/2 in
Minimum Embedment Depth 3-3/8 in
Overall Length 7 in
Shear Strength 11035 lb
Tensile Strength 115000 psi
Thread Length 4-15/16 in

Documents

California Proposition 65: This product is identified as presenting a risk of cancer and birth defects or reproductive harm; listed chemical(s): Tetrabromobisphenol A, Epichlorohydrin. See www.P65Warnings.ca.gov.
